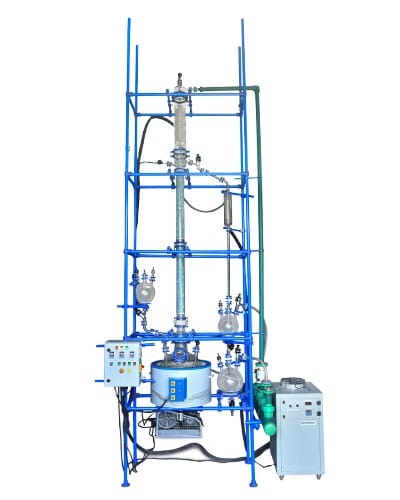

Fractional Distillation System

Products > Chemical Processing Systems > Fractional Distillation System

A fractional distillation unit is an advanced separation technology designed to purify liquid mixtures or separate components with boiling point differences as small as 1-2°C. Unlike simple distillation, which relies on a single vaporization-condensation cycle, fractional distillation achieves multiple equilibrium stages within a single column, enabling superior separation efficiency.

Our fractional distillation equipment utilizes a fractionating column packed with structured packing or fitted with trays, providing extensive surface area for repeated vaporization and condensation cycles. As the mixture is heated, vapors rise through the column while condensate flows downward. Components with lower boiling points ascend more rapidly and are collected at the top, while higher-boiling components condense and return downward, achieving progressive enrichment.

Our fractional distillation system is engineered to deliver exceptional separation efficiency, product purity,
and operational flexibility. Each feature contributes to superior distillation outcomes across demanding applications.

Multiple Stage Separation

A fractionating column with trays or packing provides numerous theoretical plates, enabling precise separation of components with closely aligned boiling points.

Precise Temperature Control

Advanced heating and cooling systems maintain exact temperature profiles along the column, ensuring optimal separation conditions.

High Purity Fraction Output

Achieves purities exceeding 99% for target components through progressive enrichment across multiple equilibrium stages.

Modular & Scalable Configuration

Systems available from 5-liter laboratory units to 500-liter industrial columns, with customizable internals for specific separation requirements.

Corrosion-Resistant Construction

Fabricated from borosilicate glass, glass-lined steel, or high-grade alloys to withstand aggressive chemicals and high-temperature operation.

Automated Process Control

PLC/SCADA integration enables precise monitoring of temperature, pressure, reflux ratio, and product take-off for consistent, repeatable results.

Manual Fractional Distillation Unit

Automation level:Manual control of heating, cooling, and reflux ratio with local instrumentation and visual monitoring.
Application scale: Small lab/bench-scale operations, educational laboratories, and process development requiring hands-on operation.

Semi-Automatic Fractional Distillation System

Automation level: PLC-based control with automated temperature regulation, data logging, and adjustable parameters; operator intervention for adjustments.
Application scale: Controlled medium-scale production, pilot plants, and processes requiring consistent operation with supervisory oversight.

Fully Automatic Fractional Distillation Plant

Automation level: Full SCADA integration with closed-loop control, recipe management, automated reflux ratio adjustment, and complete batch history.
Application scale: Industrial high-capacity production, continuous distillation operations, and regulated environments demanding strict repeatability.

For precise separation of complex liquid mixtures, K-JHIL’s fractional distillation plant delivers high-purity fractions,
operational efficiency, and reliable performance across chemical, pharmaceutical, and petrochemical industries.

For a Fractional Distillation System

With deep expertise in distillation equipment manufacturing, K-JHIL delivers high-performance fractional distillation
systems backed by customizable design and industrial reliability. Our comprehensive support ensures seamless integration,
optimized operation, and lasting performance for your separation processes.

K-Jhil Promise in Quality

Innovative Approach

Automation Expertise

Trouble-Free Processes

Tailored Process Solutions

Customer-Centric Approach

K-Jhil Promise in Quality

Tailored Process Solutions

Innovative Approach

Automation Expertise

Customer-Centric Approach

Trouble-Free Processes

What is a fractional distillation system?

A fractional distillation system is a separation process that uses a fractionating column to achieve multiple vaporization-condensation stages, enabling precise separation of liquid mixtures, particularly those with components having closely aligned boiling points (differences as small as 1-2°C).

How does fractional distillation differ from simple distillation?

Simple distillation uses a single vaporization-condensation cycle and is suitable for components with boiling-point differences greater than 25°C. Fractional distillation employs a fractionating column with trays or packing, providing multiple equilibrium stages that enable the separation of components with much closer boiling points.

What industries use fractional distillation equipment?

Key industries include chemical manufacturing (solvent purification), pharmaceutical production (API intermediate separation), petrochemical refining (hydrocarbon fractionation), specialty chemicals (fine chemical isolation), and solvent recovery operations.

What factors affect fractional distillation efficiency?

Key factors include column height and number of theoretical plates, reflux ratio (higher ratios improve purity but reduce throughput), temperature control precision, feed composition, and pressure conditions (vacuum operation reduces boiling points for heat-sensitive compounds).

Can fractional distillation systems be customized for specific applications?

Yes. As an experienced fractional distillation equipment manufacturer, we offer fully customizable solutions, including column diameter and height, tray or packing type, material of construction (glass, glass-lined, stainless steel), automation level, and capacity from 5 to 500 liters.

Advanced Fractional Distillation System
for High-Purity Separation
